Description

PCPARTY
※示意圖僅供參考,實際商品以原廠出貨為準※
特色

•EK 設計
•多種安裝方式

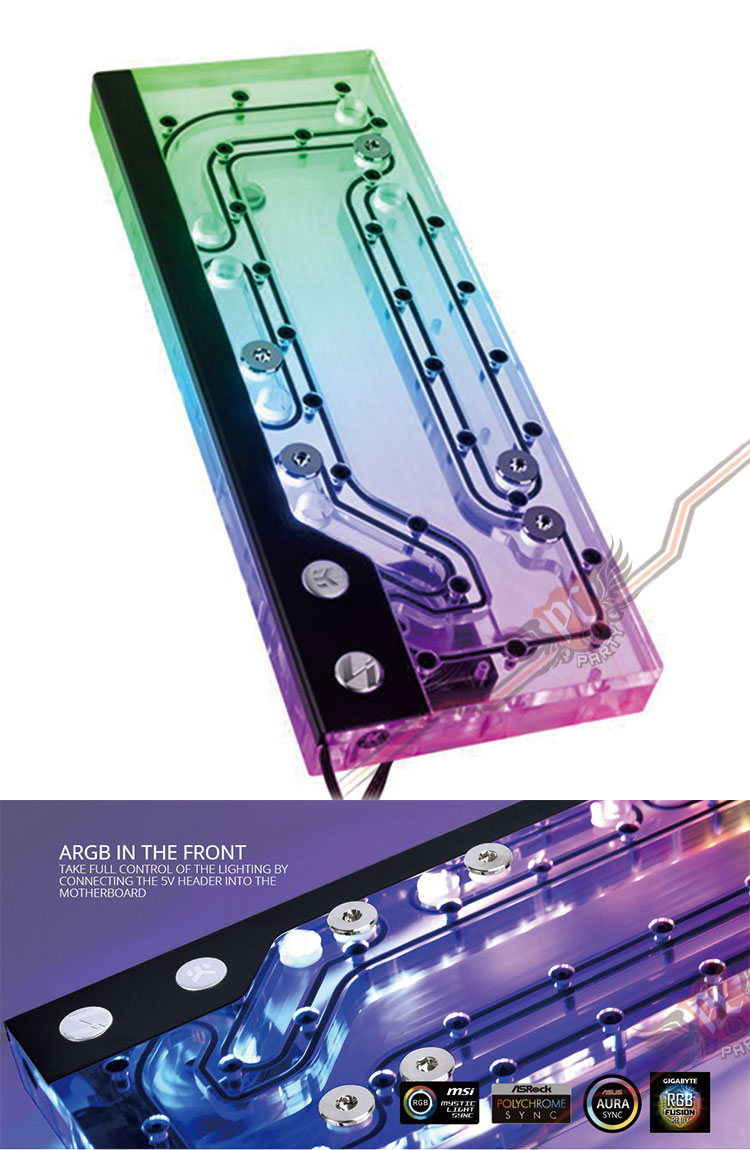

•支援ARGB 燈光效果
•含DDC3.1幫浦

規格

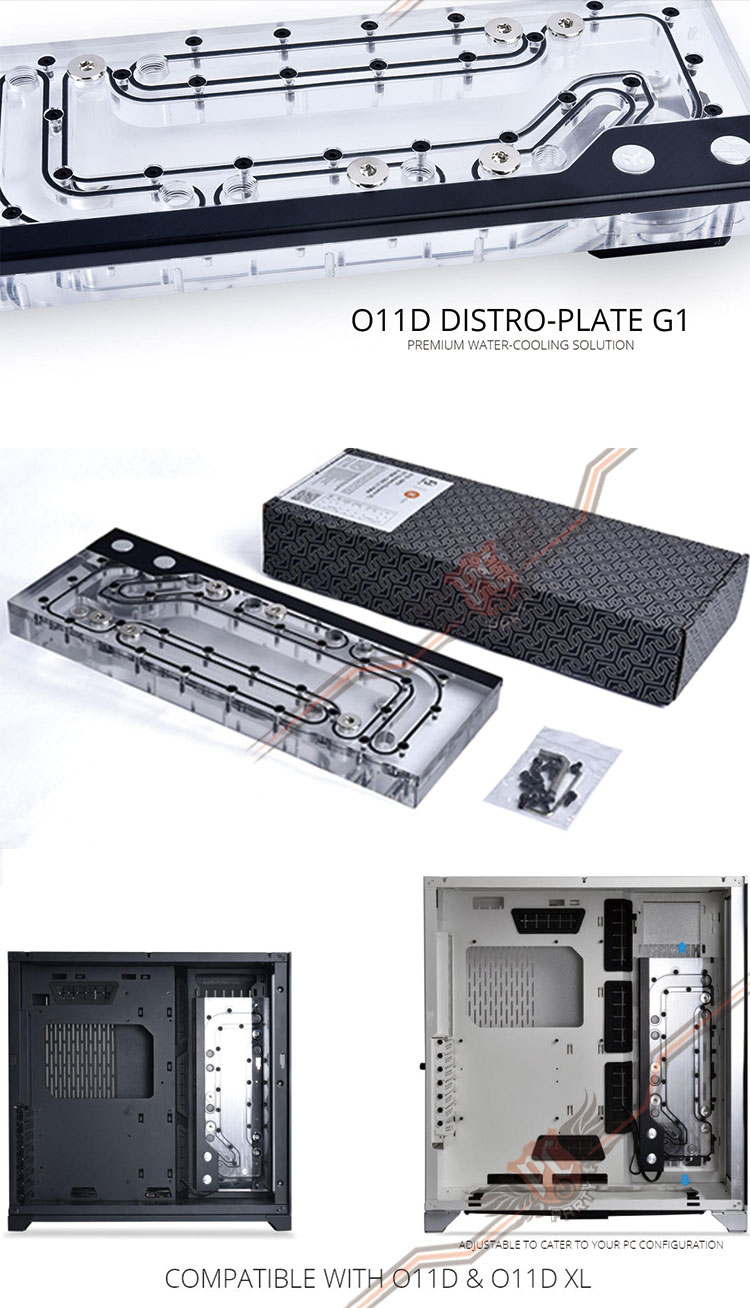

MODEL:LIAN LI O11D DISTRO-PLATE G1 DESIGNED BY EKWB WITH DDC 3.1 PUMP
DIMENSIONS:(L) 345 x (W) 131 x (H) 29 mm
MATERIAL:ACRYLIC (BODY)
PPS-GF30, EPDM O-RINGS, ALUMINUM OXIDE, GRAPHITE (PUMP)
COMPATIBILITY:O11D SERIES, O11D XL
ADDRESSABLE RGB LED STRIP:1 (LED COUNT 18
LED POWER CONSUMPTION:0,3A 5V
CPU BLOCK SUPPORT:1 CPU block
GPU BLOCK SUPPORT:UP TO 2 GPU BLOCKS IN SLOT 1 OR SLOT 2
RADIATOR SUPPORT:UP TO 2 X 120/240/360MM RADIATORS UP TO 60MM IN THICKNESS
PORT THREAD TYPE:G1/4
MOUNTING HOLE SIZE:M4 (MOUNTING HARDWARE IS INCLUDED)
PUMP ELECTRICAL & MECHANICAL PROPERTIES
MOTOR:ELECTRONICALLY COMMUTED MOTOR
RATED VOLTAGE:12V DC
POWER CONDUMPTION:6W
MAXIMUM PRESSURE HEAD:2.6M<
MAXIMUM FLOW:500 L/H
MAXIMUM AMBIENT TEMPERATURE:10-50°C
MAXIMUM FLUID TEMPERATURE:10-60°C
POWER CONNECTOR 4PIN PWM FAN CONNECTOR
CABLE LENTH:50CM
TECHNICAL DATA
Reservoir Diameter:60mm
Overall Height:121mm incl. pump
Mounting hole pattern:50x50mm
OPERATIONAL REGIME
PWM DUTY CYCLE: ~ 20-100%
DEFULT BEHAVIOR:Runs at 100% duty cycle when no PWM feedback signal is present.
