•1.77“彩色OLED,用於實時系統統計和個性化徽標或動畫
•嵌入式微纖維有助於將VRM和M.2區域冷卻至20°C
•質量Noctua工業PPC PWM風扇提供高氣流和最小噪音
•ROG Vortex一站式控制中心,用於照明,OLED顯示和冷卻
•可單獨尋址的RGB和NCVM塗層泵蓋突出了時尚,現代的美學
•在構建的中心階段,為ROG主板提供補充
•加強套管,提高耐用性
Water Block:
Water Block Dimension: 100 x 100 x 70 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066;AMD: AM4, TR4*
Radiator:
Radiator Dimension: 272 x 122 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm
Fan:

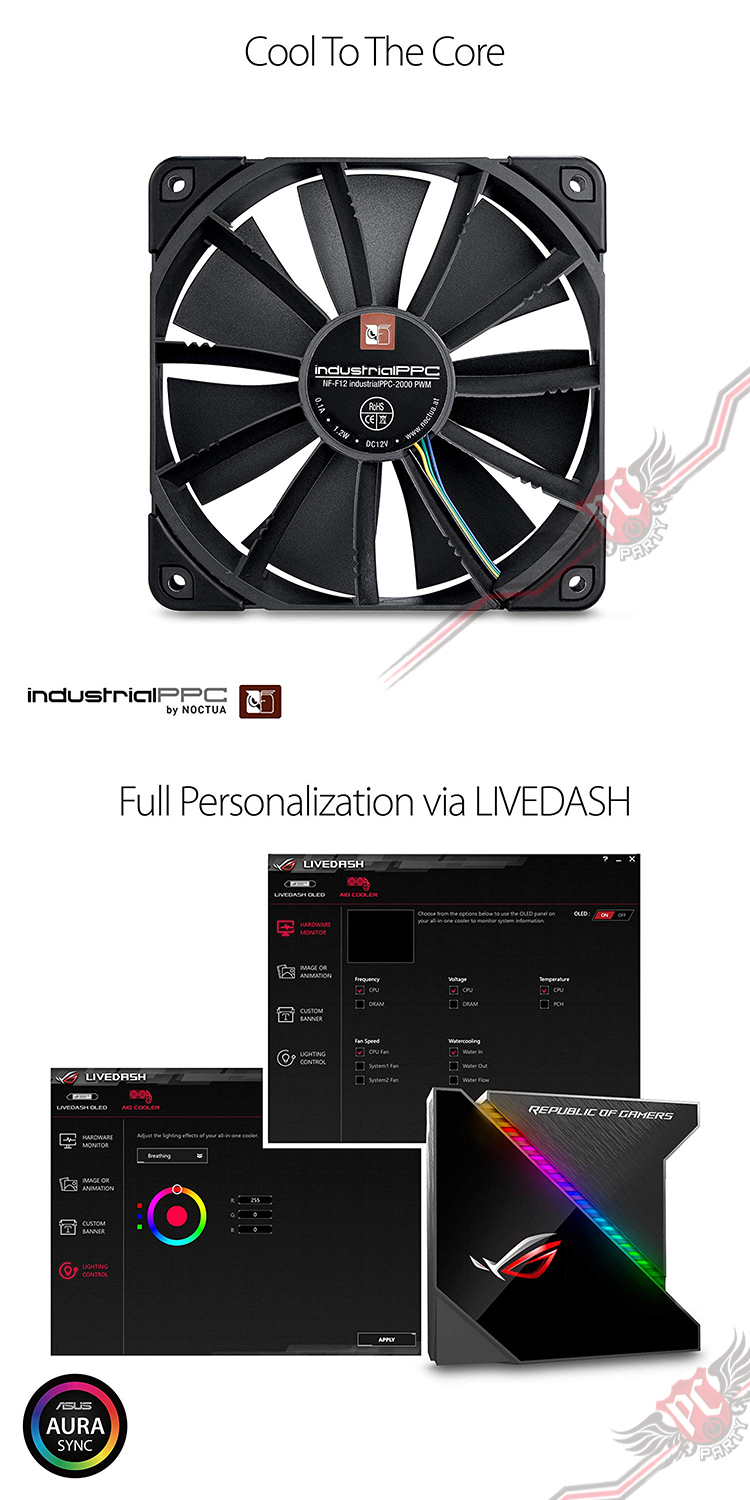

Fan: 2 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 2 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 450 ~ 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 71.6 CFM / 121.8 m 3 h
Fan Noise: 29.7 dB(A)
Control Mode: PWM
獨特功能:
OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.23 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A)

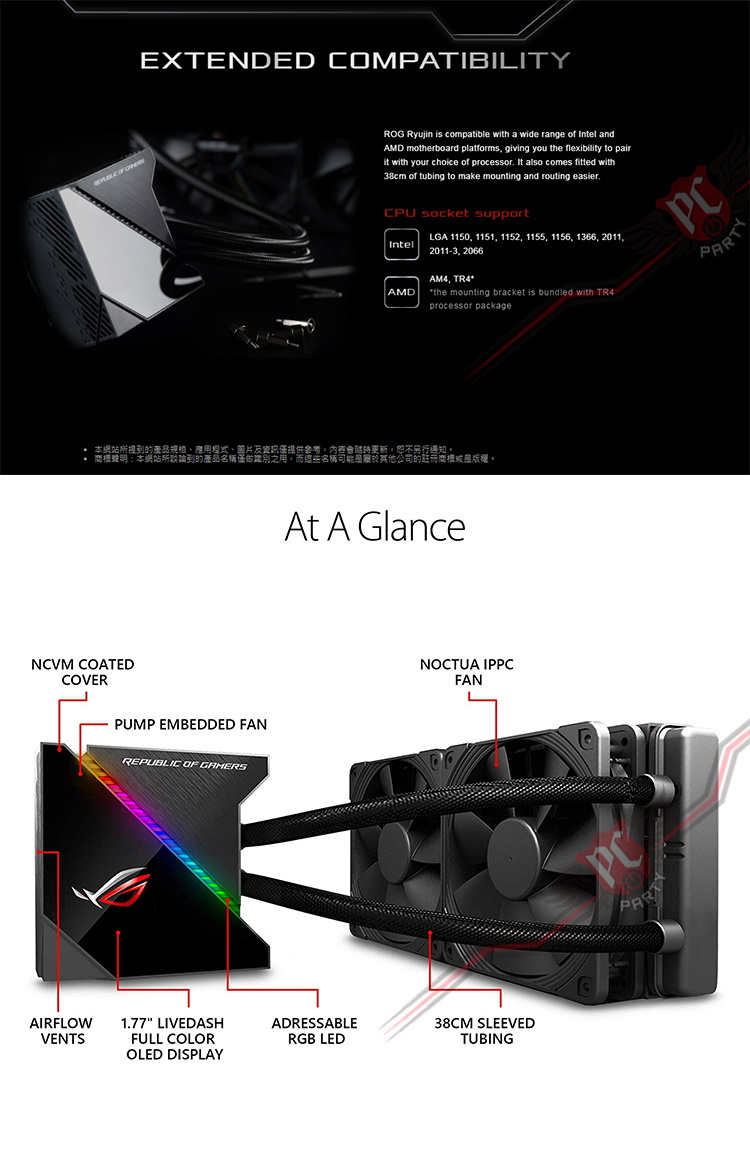

Compatibility:
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
包裝內容:

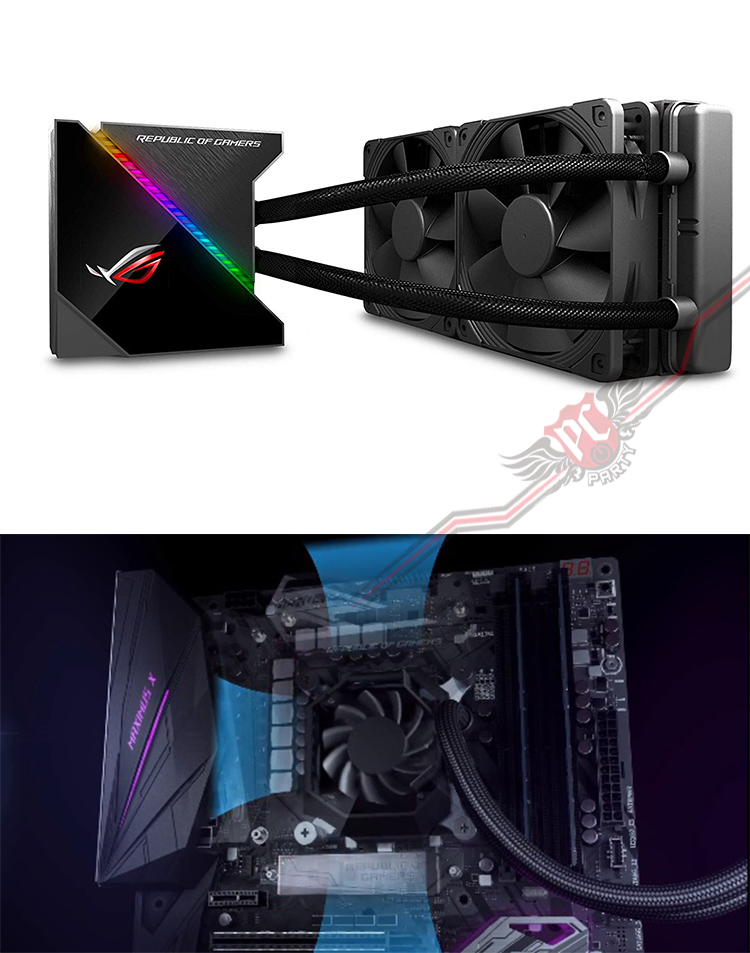

ROG RYUJIN 240 Liquid Cooler
Accesory Pack of Scews and brackets
2 x 120mm Noctua iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
Warranty :
3 years
備註:
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN's package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable and embedded fan on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
